[SHA256] FF() 구성 모듈 - (1): RR, Sigma0, Sigma1

Transform() 함수 내부에서 동작하는 여러 모듈들..





RR(Rotate Right)

---

* RTL

// rotate right
module calc_RR(
	input 	wire 	[8*8-1:0] 	x,
	input 	wire 	[4:0]		n,
	output wire 	[8*8-1:0] 	calc_x
);

	assign calc_x = (x>>n) | (x<<(64-n)); // 64bit

endmodule

(x>>13) | (x<<(64-13))

= (x>>13) | (x<<51)



* TestBench

`timescale 1ns/1ps

module tb_define;
	reg 	[8*8-1:0]	i_msg;
	reg 	[4:0]		i_cnt;
	wire 	[8*8-1:0]	o_result;

	calc_RR U0_RR	(
		.x	(	i_msg		),
		.n	(	i_cnt		),
		.calc_x	(	o_result	)
	);

	// Generate inputs
	initial begin
		i_msg = 'b1100_1100;
		i_cnt = 'd13;

		#(50);
		$finish;
	end

endmodule



---

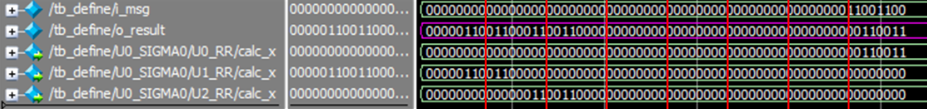

출력 결과

64bit Roate Right 출력 결과

13회 오른쪽으로 회전 이동을 한 결과이다.

입력값: 0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_1100_1100

출력값: 0000_0110_0110_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000



x>>13 : 0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000
x<<51 : 0000_0110_0110_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000
-------------------------------------------------------------------------------------------------------------------------------------
or연산 : 0000_0110_0110_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000









Sigma0, Sigma1

---

* RTL

module Sigma0(
	input 	wire 	[8*8-1:0] 	x,
	output wire 	[8*8-1:0] 	calc_x
);

	wire 	[4:0] 	n0;
	wire 	[4:0] 	n1;
	wire 	[4:0] 	n2;

	wire 	[8*8-1:0] calc_x0;
	wire 	[8*8-1:0] calc_x1;
	wire 	[8*8-1:0] calc_x2;

	assign n0 = 'd2;
	assign n1 = 'd13;
	assign n2 = 'd22;


	calc_RR U0_RR	(
		.x	(	x		),
		.n	(	n0		),
		.calc_x	(	calc_x0		)
	);

	calc_RR U1_RR	(
		.x	(	x		),
		.n	(	n1		),
		.calc_x	(	calc_x1		)
	);

	calc_RR U2_RR	(
		.x	(	x		),
		.n	(	n2		),
		.calc_x	(	calc_x2		)
	);

	assign calc_x = calc_x0^calc_x1^calc_x2; // XOR

endmodule

※ Sigma1는 Sigma0의 코드에서 아래의 코드 부분만 다르다.

assign n0 = 'd6;
assign n1 = 'd11;
assign n2 = 'd25;





* TestBench

`timescale 1ns/1ps

module tb_Sigma0;
	reg 	[8*8-1:0]	i_msg;
	wire 	[8*8-1:0]	o_result;

	Sigma0 U0_SIGMA0(
		.x		(	i_msg		),
		.calc_x		(	o_result	)
	);

	// Generate inputs
	initial begin
		i_clk = 1'b1;
		i_msg = 'b1100_1100;

		#(10);
		$display("o_result = '0x%b'", o_result);

		#(50);
		$finish;
	end

endmodule



---

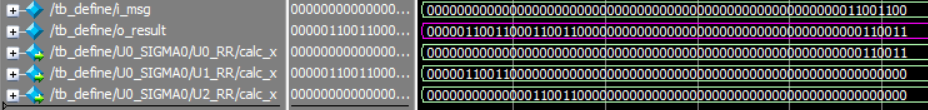

출력 결과

입력값: 0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_1100_1100

출력값: 0000_0110_0110_0011__0011_0000_0000_0000__0000_0000_0000_0000__0000_0000_0011_0011



RR(x, 2)  : 0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0011_0011
RR(x, 13) : 0000_0110_0110_0000__0000_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000
RR(x, 22) : 0000_0000_0000_0011__0011_0000_0000_0000__0000_0000_0000_0000__0000_0000_0000_0000
-------------------------------------------------------------------------------------------------------------------------------------
xor연산  : 0000_0110_0110_0011__0011_0000_0000_0000__0000_0000_0000_0000__0000_0000_0011_0011





---
